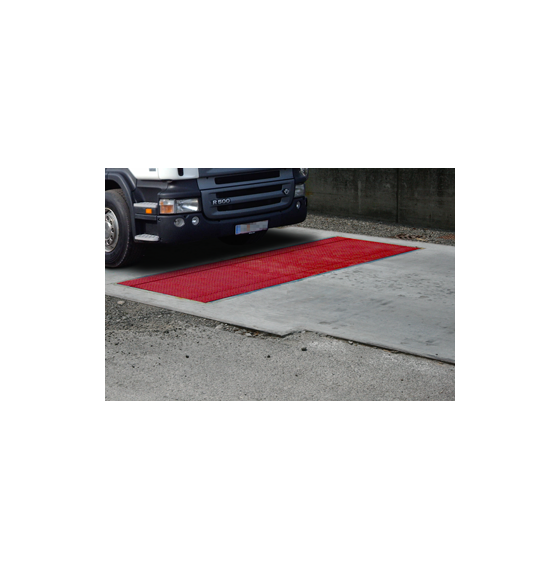

Dynamic Axle Weighing

Technical features

• Designed for controlled-access weighing stations, with vehicle transit at reduced speed within 5km/h (refer to installation manual for more information)
• Accuracy 1% for internal use, 2% for legal for trade use. These accuracies can be obtained by following the installation specifications and instructions in the installation manual.
• Anti-slipping loading surface made of sheet metal, sized to withstand any load on the basis of the parameters dictated by the Directive 96/53/EC (maximum load on single axle for vehicles transiting in Europe).
• Steel beam supporting structure.
• Sized to weigh axles up to 20t and detect axle overloads up to 30t (refer to product manual for use and maintenance conditions).
• Complete with frame for the containment, made up of a single bearing structure, in welded painted steel, that does not require assembly. It facilitates the installation of the scale and simplifies the masonry.
• Sandblasting and varnishing with bi-component epoxy coating, highly resistant to corrosion.
• Dimensions of the load surface (lxw): 3 x 0.73 m.
• 6 compression load cells, class C3, stainless steel, with IP68 protection.
• 20m cable for connection to the weight indicator.
• Dust and waterproof wirings and connections, easy to connect and disconnect.
• Hermetic junction box.
• Central inspected trapdoors for the ordinary maintenance.
• Wide range of connectable weight indicators, also functioning with rechargeable battery, which allow to use the platform also without an electrical power supply.

Stationary and in-motion weighing

• Depending on the combined weight indicator, the axles of the vehicle can be weighed while stationary or in motion:

  - The stationary weighing function allows the vehicle to be weighed by adding up the weights of the individual axles.
  As well as being the most cost-effective way to weigh, it avoids penalties due to axle overloading.
  - The in-motion weighing function allows you to minimize weighing time.
  The weight is acquired as the vehicle passes over the scale, without the need to stop for weighing each axle.
  In-motion weighing is particularly suitable for those who need to weigh frequently during the day.

Available weighing functions

• Depending on the combined weight indicator, the system offers the following operating functions:
  - Weighing of the axle of a vehicle.
  - Calculation of the total weight of the vehicle.
  - Weighing with insertion of the preset tare weight.
  - Calculation of the weight difference between two weighs.
  - Database of 500 vehicles.
  - Customizable texts.
  - Printing and saving of the weighs on USB memory.

Main applications

• The axle weighing system is ideal to:
  - Check the weight of each axle or of all the various sums of weights and detect any overloads.
  - Check the weight of the material transported by the vehicle and carry out simple checks on incoming/outgoing goods.

Certifications and approvals

• The system is CE approved according to Directive 2014/31/EU (NAWI, static weighing) for verification of the axle weight.
• The system is also OIML R134 certified for in-motion weighing (dynamic) of the whole vehicle, at a maximum speed of 5km / h with a weighing accuracy of 2% (sum of the weight of the axles, depending on the rules in force in the country of use).
• The system is approved in Italy as a weighing instrument with automatic operation, for in-motion road vehicle weighing according to Decree no.267995 of 19/9/2019.
• The system is also approved for dynamic weighing in various European countries (for further information please contact our sales office).
