Indicators Intrinsically Safe / Explosion-Proof

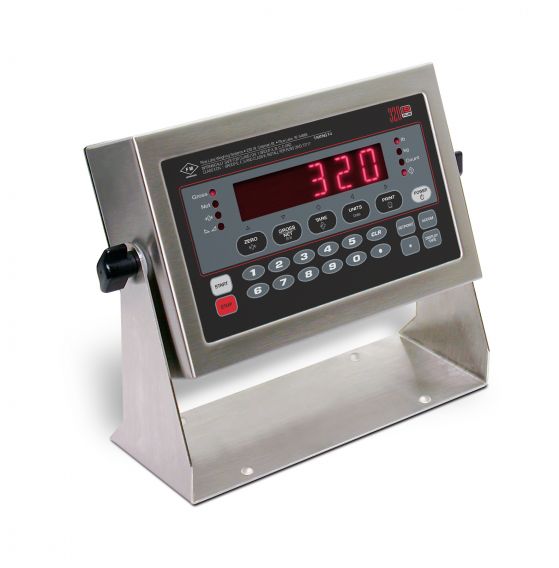

Rice Lake 320IS Plus Intrinsically-Safe Indicator

Estimated delivery within 4-7 working days

Description:

Rice Lake's 700IS intrinsically safe weight indicator is designed to be operator friendly, offering basic and easy to understand functions with a full front keypad. Use with either AC or DC power supply, both intrinsically safe.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

Bright Light Emitting Diode (LED)
Stainless steel NEMA 4X/IP66 enclosure
T4 temperature rating
Front-panel digital calibration
Automatic zero and span temperature compensation
Excitation for four 350 OHM or eight 700 OHM load cells
Gross/Tare/Net computation
Tilt stand
Factory Mutual (FM) Entity approved
Duplex fiber optic interface
Power ON/OFF; battery save mode
I/O Module Option: 2 serial ports, 2 analog outputs, 4 digital inputs, 4 relay contact outputs.
8 setpoint kinds (requires I/O module)
Factory Mutual (FM entity approved for classes I, II, and III; Divisions 1 and 2; Groups A, B, C, D, E, F, and G
