Load Cell Canister (Ideal for high capacity weighing, used in vehicle weighing applications, and tank and hopper weighing applications) Canisters

LCC12 - Compression, stainless Steel

Estimated delivery within 4-7 working days
Description: For tank scale and hopper scale

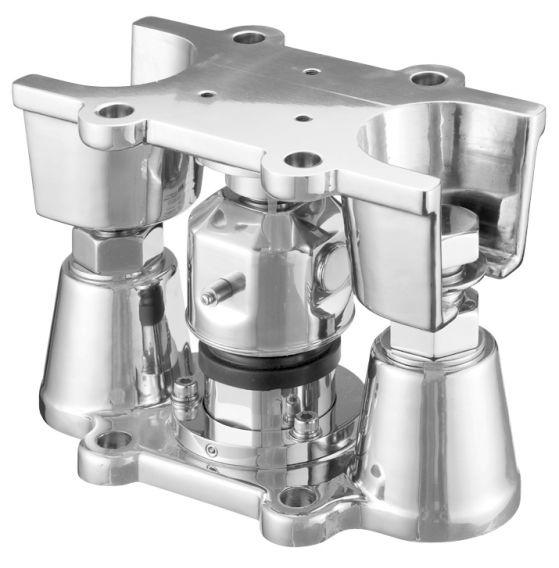

LCC12 Series Weigh Module
load cell with mount assembly (all stainless steel)
    Capacity    Model No.
   100kN(10tf)    LCC12T010
   200kN(20tf)    LCC12T020
   300kN(30tf)f    LCC12T030
Rated capacities 100kN(10tf), 200kN(20tf), 300kN(30tf)
Rated output 2mV/V±0.1%
Maximum Safe overload 150% of R.C.
Combined error 0.03% of R.O.
Recommended excitation voltage DC5-12V
Maximum excitation voltage DC15V
Zero balance ±1% of R.O.
Input terminal resistance 800Ω±80Ω
Output terminal resistance 2200±10Ω
Insulation resistance Greater than 5000MΩ/DC50V
Operating temperature -20°C~ 60°C
Compensated temperature range -20°C~ 60°C
Temperature effect Zero 0.019% of R.O./10 Typ.
Span 0.010% of Load/10 Typ.
Cable diameter/Length o 8/12m
Dustproof/Waterproof IP68
Allowance for horizontal force 75KN
Allowance for floating force 80kN

*The LCC12 provides for IP68 enclosure rating with greater than 100 hours protection at 1.5m immersion.

  • Hermetically sealed stainless steel construction protection from water, moisture and corrosion(IP68)*.
  • Advanced load design for tanks, hoppers.
  • Compression type
  • Mount assembly (anti-vibration, floating prevention mechanism)
