Indicators Rinstrum 2100 Series Indicators

2100 - General Purpose Indicator

Estimated delivery within 4-7 working days
2100 - General Purpose Indicator

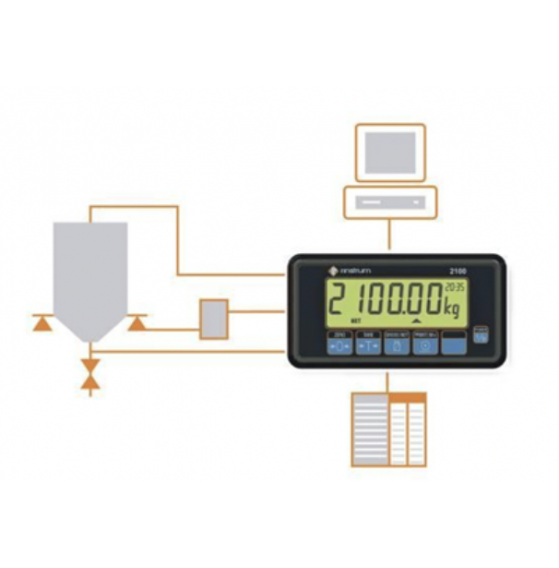

The 2100 series indicators feature a large LCD display in a compact slim line housing. The 2100 combines a practical set of applications, including filling and check weighing, with a range of power and mounting options.
Built in application support

Three input/outputs standard: Three (3) control points can be configured independently as either inputs or outputs.

Programmable function key: Batch control, Parts counting, Unit switching, Hold and peak hold, Live weight and Total

Suitable in various lighting conditions: The large 27mm high LCD display and LED backlighting make for improved visibility in all lighting conditions.

Flexible power options: The unit is available in four powering options, two DC variants, AC and battery.

Serial Output: The RS232 serial output is provided standard for use with a remote display, printer or connection back to a PC.

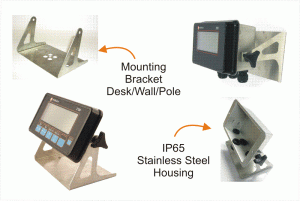

/,br/>Multiple housing options, available standard as panel mount or optionally with a stainless steel housing if a desk mounted IP65 solution is required.

Only 22mm (0.9in) deep, mounts directly on a surface with small cut outs only required for cabling to pass through.

Smart Weighing

Simple relay module mounting
The innovative design allows the relay module to mount directly onto the instrument housing; no cabling or external power required.

Download Brochures:
Download brochure (145.72 kB)
  • Trade approved to 6,000d
  • Batching - 1 material, 2 speed & dump
  • Basic catch weighing - low/pass/high
  • Battery backed Clock/Calendar
  • 3 Input/Outputs standard
  • RS232 serial output
  • Large 27mm Alpha LCD Display with LED backlighting
